C7 S-FTP 低煙無毒多股網路線(305m)

最多國際認證,品質的保證!! 完整的產品線, 一次採購,快速出貨

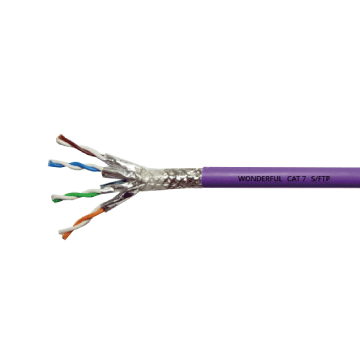

CAT.7 S/FTP 低煙無毒多股網路線

最多國際認證,品質的保證!! 完整的產品線, 一次採購,快速出貨

商品規格

．Certificate國際認證
UL
ETL
3P

．Standards 國際標準
ISO/IEC 11801 2nd Class F
UL ETL LISTED CMR CMP LSOH

．Applications 應用
FDDI/CDDI．2/4GFCBase-T
ATM 155/622MHz 1.2/2.4GHz
10/100/1000/10G Base Ethnet

．Description
JACKET: FRPVC
SHIELD: Foil Screen/Braid screen
INSULATION: FRPE/FEP
CONDUCTOR: 23/ AWG BARE SOLID COPPER

．Tech Specs
Zero Alien Crosstalk
Propagation delay skew: 20nS/100M
Capacitance unbalance(pair to ground): 330pF/100m MAX
DC Resistance, unbalance of a pair: 5% MAX
DC Resistance, MAX. Ohms/1000ft 28.6
Mutual Capacitance, MAX. nf/1000ft 17.1
ACR @ 700MHz > 0dB
Impedence : 100 +/- 15 ohms
